Tohatsu MFS3.5 CS

Specifications

Model	MFS3.5	Category Name	Outboard Engines	Year	2025
Stock Number	60200	Sale Type	New	Manufacturer	Tohatsu
Odometer	km	Fuel	Unleaded Gasoline (87 Octane)	Output	3.5 hp (2.6 kw)
Weight*	41 lbs. (18.4 kg)	Starting	Manual	Control Type	Tiller Handle
Displacement	85.5 cc (5.2 cu.in.)	Oil Capacity	10 fl. oz. (300 mL)	Bore X Stroke	55 x 36 mm (2.17 x 1.42 in)
Max. RPM Range	4,500 - 5,500	Engine (No. Of Cylinder)	1	Price	1,479 CAD

Description

This portable best-seller has been upgraded with newly designed top and bottom cowl based on the Tohatsu Design Philosophy for Marine Products using Simpliq™ Technology with ergonomically designed front and back carrying handles.

In addition, you can now store your engine in 3 different positions without worrying about oil spillage.
*Please refer to Owner's Manual for storage and transportation guidelines.

The 3.5 hp is lightweight and has a four point vibration absorption system to minimize vibration. And with sensational fuel economy this little compact 3.5hp engine has it all; making it one of the best choices available for portable outboard power.

Tohatsu 3.5 hp 4-Stroke Benefits

Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
3-way storage positions without worrying about oil spill
Newly designed front and back carrying handles for easier transportation
Water cooled and thermostatically controlled cooling system for consistent engine temperature
Digital CD ignition system for easier starting, quicker throttle response and smoother trolling
Forward-neutral shifting with 360° steering
Easy to check oil level gauge indicator located on the engine's side
Light and compact
Ultra-low emission, EPA and CARB 3-Star rating approved
5 Year limited warranty

FEATURES

Front & Back Large Carry Handles

Ergonomically designed new Large Front & Back Carrying Handles which allow easier carry and transportation from having one handle positioned slightly below another.

3-Way Storage

3-way storage positions (Port, Front & Starboard side down) without worrying about oil spill. *Please refer to Owner's Manual for storage and transportation.

Offset Engine

This Tohatsu patented powerhead design is tilted 15 degrees to the right inside the lower motor cover to create a compact top cowling design and also help with portability.

Throttle Grip

The twist type throttle control is provided on the steering handle for quick steering as well as one-handed operation to assure your safety.

360° Full Pivot Steering

The outboard can be turned to any direction, up to 360 degrees, for simple steering that is needed for small boats.

Oil Level Sight-Gauge

Conveniently located on the side of the motor, the oil level sight- gauge makes it easy to check the oil level without having to remove the cowling.

Four Point Vibration Absorb System

The specifically designed motor mounting system efficiently absorbs vibration at all rpm ranges.

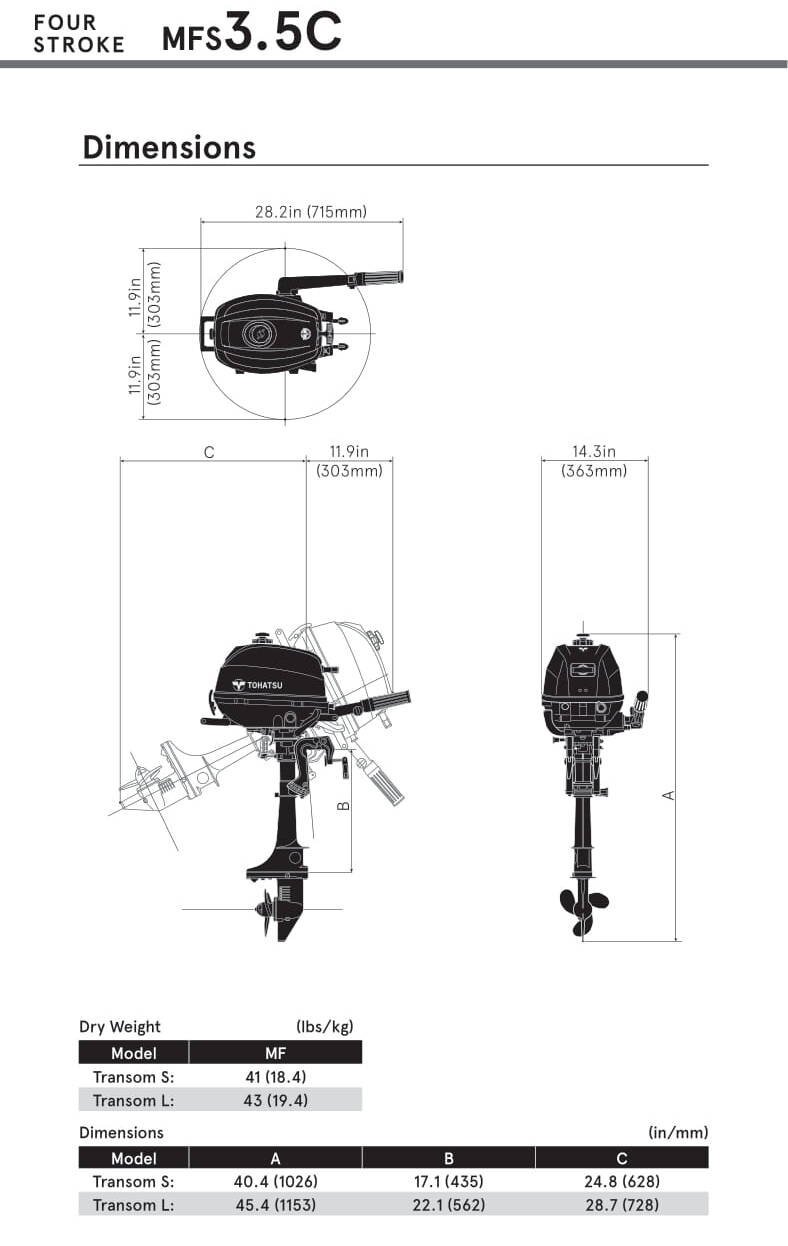

DIMENSIONS

LITERATURE

Name	Link
Brochure	Download
